Description
Overview

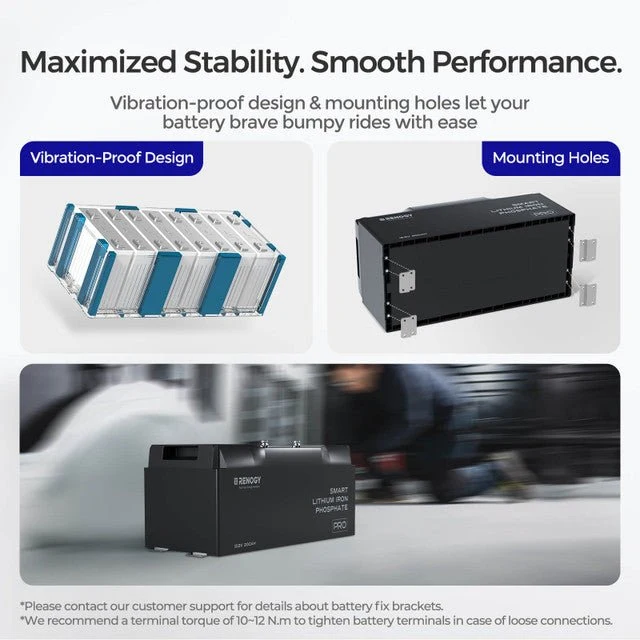

The Renogy 12V 200Ah Pro stores up to 2.56kWh and is built to withstand splashes, heat and vibration on overland trips, boats and trailers.
An automotive-grade BMS provides over 60 protections and alerts, and active backup protection cuts the circuit 40 times faster than passive protection if a MOSFET switch fails. It self-heats when the charging current is above 6A, and its UL94 V-0 casing resists fire.
Who it’s for
- Overlanders and 4×4 builds.
- Campervans, sheds, catamarans and fifth-wheel caravan trailers.
- Winter travelers who need to charge below freezing.
Key benefits
- 60+ BMS protections: an automotive-grade battery management system with over 60 protection mechanisms and alerts.
- Active backup protection: cuts the circuit 40 times faster than conventional passive protection if a MOSFET switch fails.

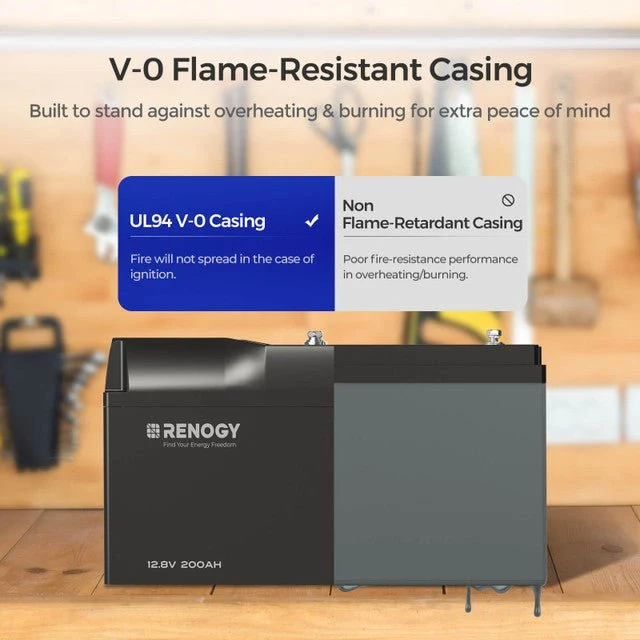

- Fire-resistant casing: rated UL94 V-0 for resistance to vertical burning.
- Self-heating: automatic above 6A of charging current.
- Capacity: up to 2.56kWh per battery.
Specifications
| Voltage | 12V |
|---|---|
| Capacity | 200Ah (up to 2.56kWh) |
| Chemistry | LiFePO4 |
| BMS protections | 60+ |
| Casing | UL94 V-0 fire-resistant |
| Heating | Automatic, charging current above 6A |

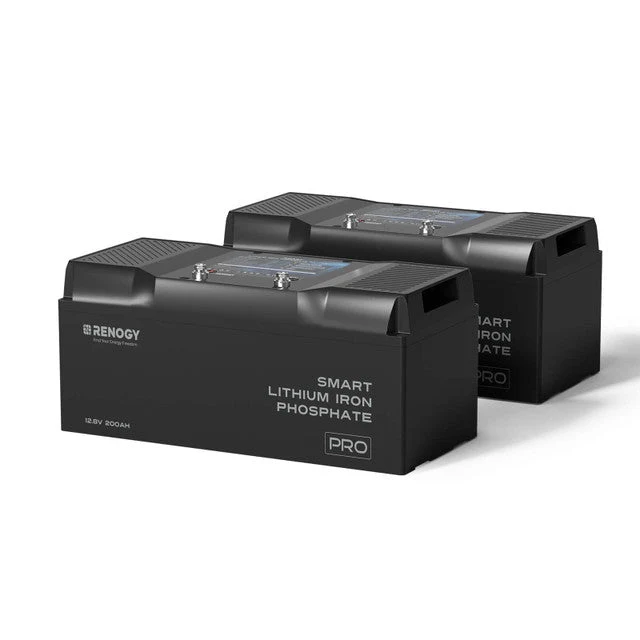

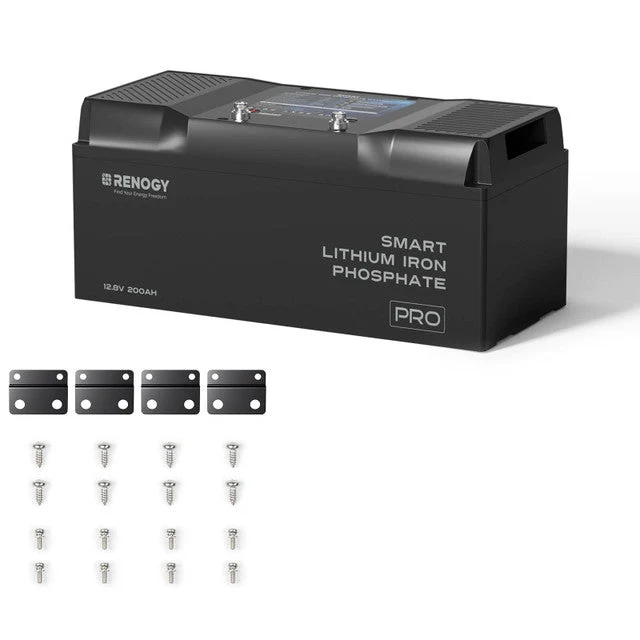

| Options | 1 or 2 batteries, or 1 battery with mounting brackets |
| Installation clearance | Leave 1.97 to 3.94 in (5 to 10 cm) above the battery and at least 7.87 in (20 cm) on the busbar side. |
| Weight (each) | 50.7 lb (manufacturer figure) |
FAQ
How much energy does it store?
Up to 2.56kWh per battery.
Is it suitable for off-road use?
Yes. Renogy built it to withstand splashes, heat and vibration.
Warranty
Manufacturer’s warranty: 7 years, prorated. Prorated: replacements in the first 12 months are free; after that Renogy charges a share of the original price based on the time used.
Our returns policy is in addition to your statutory rights.
Defective on arrival or within 30 days? You can also return it to us under our Returns & Refunds Policy. See how warranty claims work.
Reviews
There are no reviews yet.
